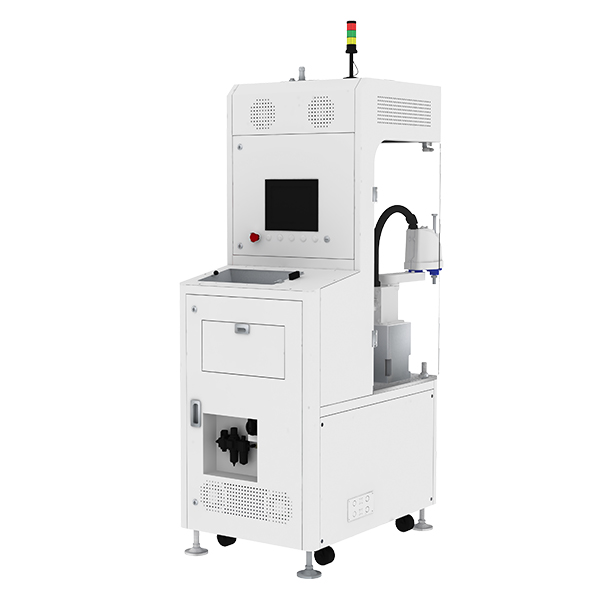

One-to-one flexible loading station FFW-S-530F
One-to-one flexible loading station FFW-S-530F
The Flexible Feeding Station is managed through our proprietary AAS integrated software for unified control. It enables one-click communication among vision systems, flexible vibratory feeders, robotic arms, PLCs, and industrial PCs, facilitating the rapid construction of automation applications. This significantly reduces the integration cycle and debugging complexity of flexible feeding systems, thereby lowering costs.
Specification
|
Model |
FFW-S-530F |
|
Applicable Part Size |
10 - 70 mm |
|
Picking Area |
372*466 mm |
|
Picking Height |
896 mm |
|
Rack Size |
80013002000 mm |
|
Light Source |
400*590 mm |
|
Feeding Accuracy |
± 0.1 mm |
|
Atmospheric Pressure |
0.5 - 0.7 mpa |
|
Voltage |
220 V |
|
Power |
1000W |
|
Communication Protocols |
TCP/IP, Modbus TCP, IO |
|
Flexible Feeder |
FF530F |
|
Plate Size |
466*372 mm |
|
Hopper Volume |
8 L |
|
Width Of The Outlet |
200 mm |
|
CCD Camera (Hikvision) |
1200W/2000W |
|
Vision Software |
TEAM AAS Ver 3.0 |
|
Manipulator Model |
EPSON LS6、T6 |
|
Manipulator Reach |
600 mm |
|
Manipulator Load |
6 kg |
|
IPC |
ADVANTECH |
|
Grippers / Nozzles |
Customize |
|
Caching Mechanism |
Optional |
|
Secondary Positioning |
Optional |
