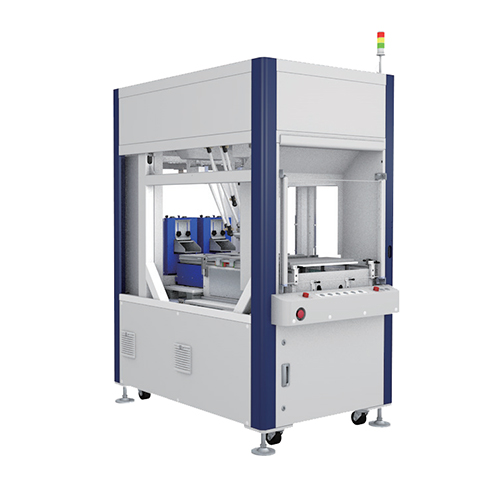

Parallel manipulator flexible loading station FFW-D-PM-240D
Parallel manipulator flexible loading station FFW-D-PM-240D
The Flexible Feeding Station is managed through our proprietary AAS integrated software for unified control. It enables one-click communication among vision systems, flexible vibratory feeders, robotic arms, PLCs, and industrial PCs, facilitating the rapid construction of automation applications. This significantly reduces the integration cycle and debugging complexity of flexible feeding systems, thereby lowering costs.
Specification
|
Model |
FFW-D-PM-240D |
|
Applicable Part Size |
5 ~ 15 mm |
|
Picking Area |
195*150 mm |
|
Picking Height |
880 mm |
|
Rack Size |
950*1400*1900 mm |
|
Light Source |
/ |
|
Feeding Accuracy |
± 0.5 mm |
|
Atmospheric Pressure |
≥0.5 mpa |
|
Voltage |
380 V |
|
Power |
4000W |
|
Communication Protocols |
Modbus TCP |
|
Flexible Feeder |
FF240D*2 |
|
Plate Size |
195*151 mm |
|
Hopper Volume |
2 L*2 |
|
Width Of The Outlet |
117 mm |
|
CCD Camera (Hikvision) |
1200W |
|
Vision Software |
TEAM AAS Ver 3.0 |
|
Manipulator Model |
Bat600M-E3 |
|
Manipulator Reach |
600 mm |
|
Manipulator Load |
3 kg |
|
IPC |
ADVANTECH |
|
Grippers / Nozzles |
Customize |
|
Caching Mechanism |
Optional |
|
Secondary Positioning |
Optional |
