With flexible manufacturing as the core,helps factories all over the world realize Industry 4.0

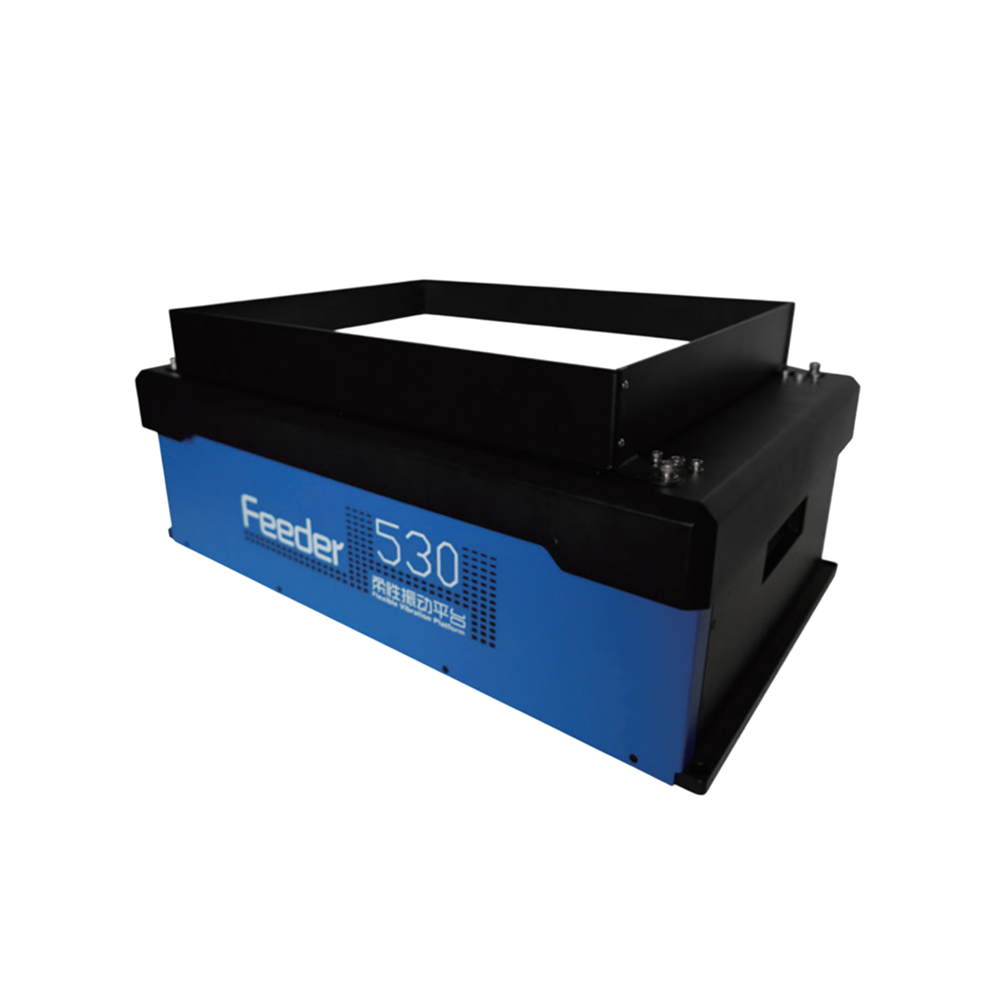

Flexible Feeder FF530F
-No fixed track, compatible with various irregular parts feeding.
-The equipment is integrated, serving the entire production line and can also coordinate with other devices, allowing for flexible deployment.
-Proprietary motor spring design minimizes the risk of spring breakage due to prolonged vibration.
-No fixed track eliminates the risk of jamming. No need for long-term vibration, reducing material wear.
Specification
| Model | FF75 |
|---|---|
| Applicable Part Size | 10 - 70 mm |
| Overall Dimensions | 620*409*268 mm |
| Plate Size | 466*372 mm |
| Weight | 43 kg |
| Weight - bearing Capacity | 1 kg |
| Operating Noise (No - load) | ≤ 80 db |
| Voltage / Current | 24V / 10A |
| Communication | Modbus TCP、TCP/IP |
| Digital I/O | 3 Channel Input, 2 Channel Output (D - sub15pin Interface) |
| Frequency | 15 - 50 Hz |
| Mounting Hole | 4×φ6.50 Completely permeate、 φ 11  8 |
