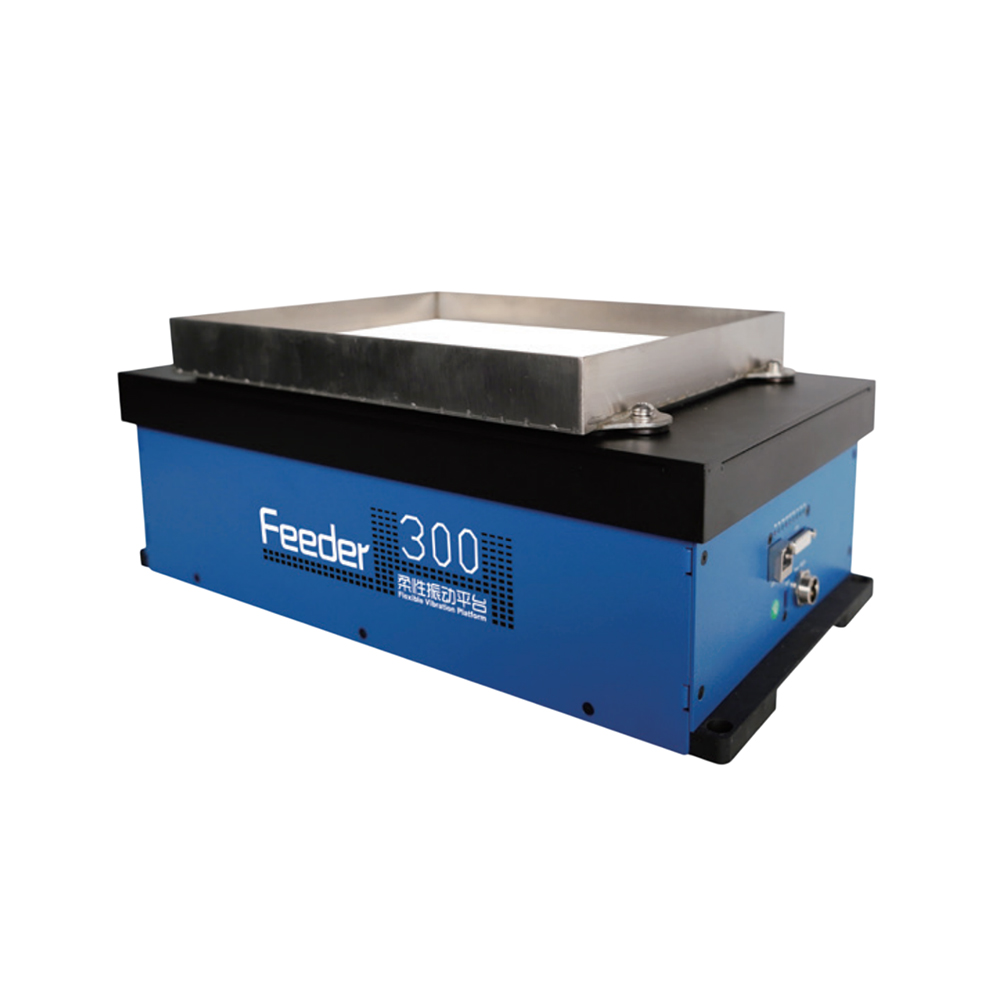

Flexible Feeder FF300D
-No fixed track, compatible with various irregular parts feeding.
-The equipment is integrated, serving the entire production line and can also coordinate with other devices, allowing for flexible deployment.
-Proprietary motor spring design minimizes the risk of spring breakage due to prolonged vibration.
-No fixed track eliminates the risk of jamming. No need for long-term vibration, reducing material wear.
Specification
| Model | FF300D |
|---|---|
| Applicable Part Size | 5 ~ 20 mm |
| Overall Dimensions | 418*236*170.5 mm |
| Plate Size | 278*221 mm |
| Weight | 9 kg |
| Weight - bearing Capacity | 0.8 kg |
| Operating Noise (No - load) | ≤ 40 db |
| Voltage / Current | 24V / 10A |
| Communication | Modbus TCP、TCP/IP |
| Digital I/O | 3 Channel Input, 2 Channel Output (D - sub15pin Interface) |
| Frequency | 10 ~ 40 Hz |
| Mounting Hole | 4×φ6.60 Completely permeate、 φ 11  6.8 |
